Building a Logistic regression in Python, step by step, using Titanic Data¶
Logistic Regression¶
As it happens, there is a separate regression model that takes care of a situation where the output variable is a binary or categorical variable rather than a continuous variable. This model is called logistic regression. In other words, logistic regression is a variation of linear regression where the output variable is a binary or categorical variable. The two regressions are similar in the sense that they both assume a linear relationship between the predictor and output variables. However, as we will see soon, the output variable needs to undergo some transformation in the case of logistic regression.
A few scenarios where logistic regression can be applied are as follows:
To predict whether a random customer will buy a particular product or not, given his details such as income, gender, shopping history, and advertisement history To predict whether a team will win or lose a match, given the match and team details such as weather, form of players, stadium, and hours spent in training Note how the output variable in both the cases is a binary or categorical variable.
PROBLEM STATEMENT¶
The sinking of the Titanic on April 15th, 1912 is one of the most tragic tragedies in history. The Titanic sank, during her maiden voyage, after colliding with an iceberg, killing 1502 out of 2224 passengers. The numbers of survivors were low due to the lack of lifeboats for all passengers and crew. While there was some element of luck involved in surviving, it seems some groups of people were more likely to survive than others, such as women, children, and upper-class. This case study analyzes what sorts of people were likely to survive this tragedy. The dataset includes the following:
- Pclass: Ticket class (1 = 1st, 2 = 2nd, 3 = 3rd)
- Sex: Sex
- Age: Age in years
- Sibsp: # of siblings / spouses aboard the Titanic
- Parch: # of parents / children aboard the Titanic
- Ticket: Ticket number
- Fare: Passenger fare
- Cabin: Cabin number
- Embarked: Port of Embarkation C = Cherbourg, Q = Queenstown, S = Southampton
- Target class: Survived: Survival (0 = No, 1 = Yes)
DATA SOURCE: https://www.kaggle.com/c/titanic¶
Methodology¶
We will be using a machine learning algorithm - binary logistic regression using Python to predict whether the person will survive or not (usually denoted with 1 and 0). Logistic regression is a classification machine learning algorithm which is suitable for binary dependent variable and provides the output as the probability of being 1.¶
We have 2 datasets - train and test. We will build the model on the train data and then test the model on test to check the accuracy.¶
First we will do exploratory data analysis, followed by feature engineering, outlier and missing value treatment.¶
Then we will run logistic regression using both StatsModel and Scikit Learn (sklearn) and compare their accuracy, to judge which provides a better output¶
IMPORT LIBRARIES¶
We are importing all the required libraries
In [1]:
import pandasas pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
%matplotlib inline
IMPORT DATASET¶
In [2]:
# read the data using pandas dataframe
import os
os.chdir("D:\\Python case study 4")
train = pd.read_csv('Train_Titanic.csv')
In [3]:
# Show the data head!
train.head()
Out[3]:
| PassengerId | Survived | Pclass | Name | Sex | Age | SibSp | Parch | Ticket | Fare | Cabin | Embarked | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 1 | 0 | 3 | Braund, Mr. Owen Harris | male | 22.0 | 1 | 0 | A/5 21171 | 7.2500 | NaN | S |
| 1 | 2 | 1 | 1 | Cumings, Mrs. John Bradley (Florence Briggs Th... | female | 38.0 | 1 | 0 | PC 17599 | 71.2833 | C85 | C |
| 2 | 3 | 1 | 3 | Heikkinen, Miss. Laina | female | 26.0 | 0 | 0 | STON/O2. 3101282 | 7.9250 | NaN | S |
| 3 | 4 | 1 | 1 | Futrelle, Mrs. Jacques Heath (Lily May Peel) | female | 35.0 | 1 | 0 | 113803 | 53.1000 | C123 | S |
| 4 | 5 | 0 | 3 | Allen, Mr. William Henry | male | 35.0 | 0 | 0 | 373450 | 8.0500 | NaN | S |
The data has been properly imported.
Observation : We can't predict anything with the PasserngerId, Name, and Ticket column, hence we will drop it. Here, we understand Survived is our dependent variable. The place where the person has boarded the ship (Embarked column) shouldn't be predicting their chance of survival, hence it will also be dropped.¶
In [5]:
train.drop(["PassengerId","Name","Ticket","Embarked"],axis=1,inplace=True)
train.head(2)
Out[5]:
| Survived | Pclass | Sex | Age | SibSp | Parch | Fare | Cabin | |
|---|---|---|---|---|---|---|---|---|
| 0 | 0 | 3 | male | 22.0 | 1 | 0 | 7.2500 | NaN |
| 1 | 1 | 1 | female | 38.0 | 1 | 0 | 71.2833 | C85 |
EXPLORE/VISUALIZE DATASET¶
In [6]:
# EXPLORE/VISUALIZE DATASET# Let's count the number of survivors and non-survivors
train['Survived'].value_counts()
Out[6]:
0 549
1 342
Name: Survived, dtype: int64
Observation : Here 1 means survived and 0 means died. Pretty much balanced data, since number of 1 and 0 are close.¶
In [7]:
#Number of people travelling by different class
plt.figure(figsize=[10,5])
sns.countplot(x = 'Pclass', data = train)
Out[7]:
<AxesSubplot:xlabel='Pclass', ylabel='count'>
Observation : Maximum people were travelling by 3rd class¶
In [8]:

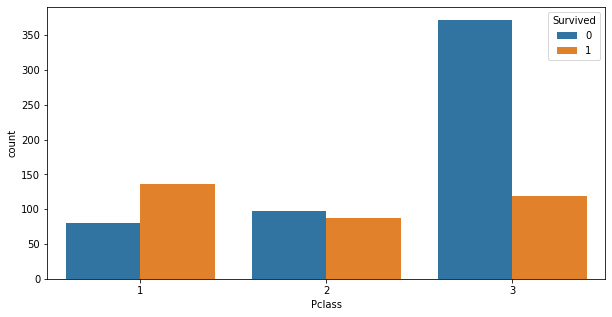

plt.figure(figsize=[10,5])#### Observation : Here 1 means survived and 0 means died. Pretty much balanced data, since number of 1 and 0 are close.
sns.countplot(x = 'Pclass', hue = 'Survived', data=train)
Out[8]:
<AxesSubplot:xlabel='Pclass', ylabel='count'>
Observation : More people travelling by 1st class survived; it's almost equal for 2nd class (marginally more people die though), and most of the people travelling by 3rd class died. This chart shows that the class had some impact whether a person would survive or not.¶
Now the same analysis will be made on other independent variables¶
In [9]:

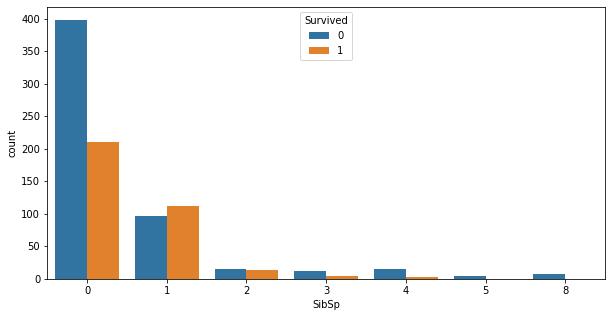

plt.figure(figsize=[10,5])
sns.countplot(x = 'SibSp', hue = 'Survived', data=train)
Out[9]:
<AxesSubplot:xlabel='SibSp', ylabel='count'>
Observation : Bar Chart to indicate the number of people survived based on their siblings status. If you have 1 siblings (SibSp = 1), you have a higher chance of survival compared to being alone (SibSp = 0)¶
In [10]:
plt.figure(figsize=[10,5])
sns.countplot(x = 'Parch', hue = 'Survived', data=train)
Out[10]:
<AxesSubplot:xlabel='Parch', ylabel='count'>
Observation : Bar Chart to indicate the number of people survived based on their Parch status (how many parents onboard). If you have 1, 2, or 3 family members (Parch = 1,2), you have a higher chance of survival compared to being alone (Parch = 0)¶
In [11]:

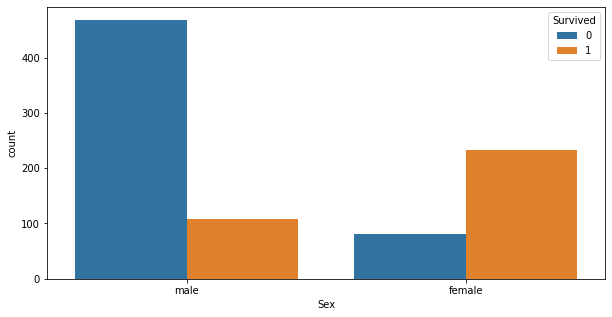

plt.figure(figsize=[10,5])
sns.countplot(x = 'Sex', hue = 'Survived', data=train)
Out[11]:
<AxesSubplot:xlabel='Sex', ylabel='count'>
Observation : Bar Chart to indicate the number of people survived based on their sex. If you are a female, you have a higher chance of survival compared to other ports!¶
Female and children were given first preference for safety, hence it makes sense that gender will help to predict the chances of survival.¶
In [12]:

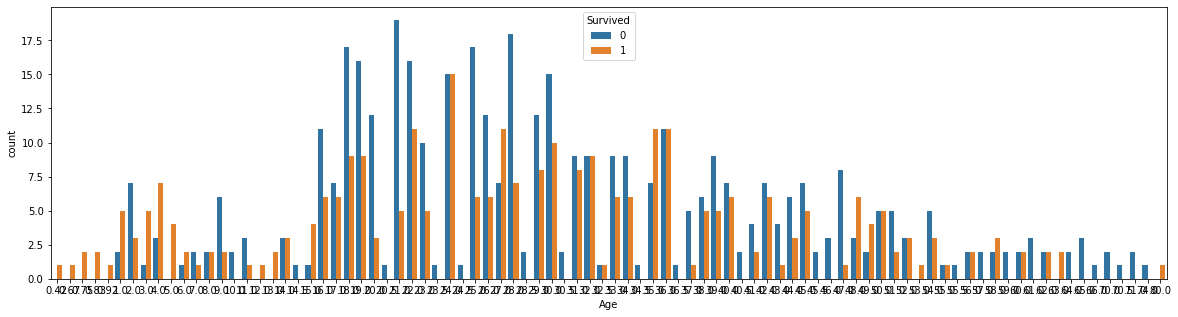

plt.figure(figsize=(20,5))
sns.countplot(x = 'Age', hue = 'Survived', data=train)
Out[12]:
<AxesSubplot:xlabel='Age', ylabel='count'>
In [13]:

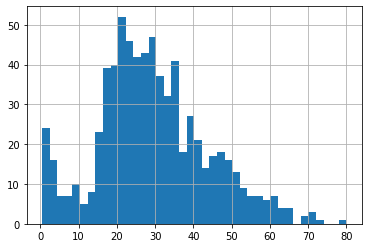

# Age Histogram
train['Age'].hist(bins = 40)
Out[13]:
<AxesSubplot:>
Observation : The histogram shows that majorly people were around the age of 20 to 30¶
In [14]:

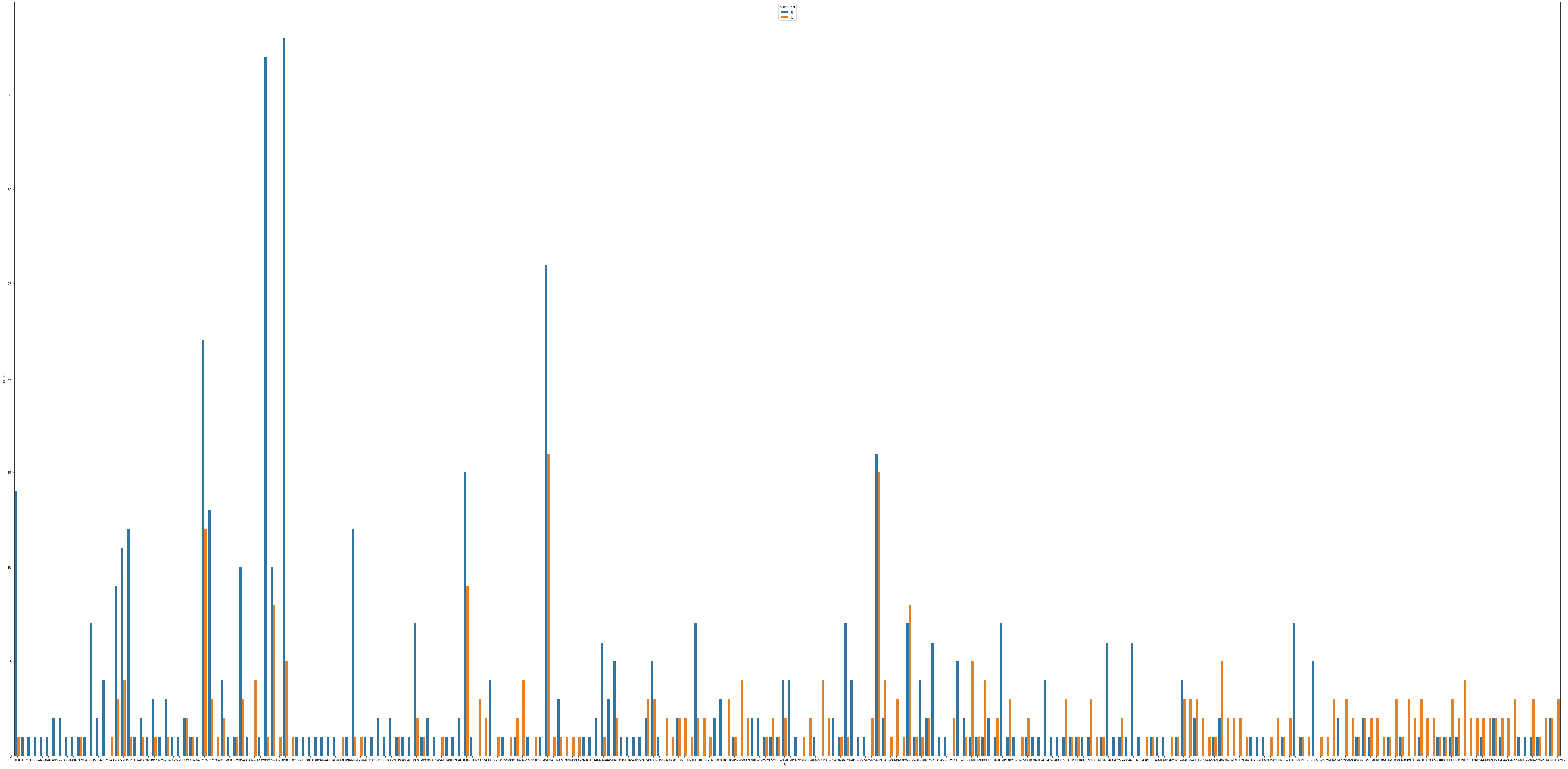

plt.figure(figsize=(80,40))
sns.countplot(x = 'Fare', hue = 'Survived', data=train)
Out[14]:
<AxesSubplot:xlabel='Fare', ylabel='count'>
Observation : # Bar Chart to indicate the number of people survived based on their fare. If you pay a higher fare, you have a higher chance of survival¶
In [15]:

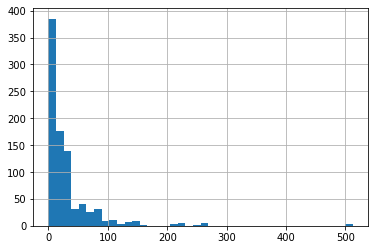

# Fare Histogram
train['Fare'].hist(bins = 40)
Out[15]:
<AxesSubplot:>
Observation : # Mostly people had paid low value fare. Only a handful of people had paid high fare.¶
PREPARE THE DATA FOR TRAINING/ DATA CLEANING¶
In [16]:
# number of missing values by variables
train.isnull().sum()
Out[16]:
Survived 0
Pclass 0
Sex 0
Age 177
SibSp 0
Parch 0
Fare 0
Cabin 687
dtype: int64
Observation: There are missing values for Age and Cabin¶
In [17]:
# percentage of missing values by variables
train.isnull().mean()*100
Out[17]:
Survived 0.000000
Pclass 0.000000
Sex 0.000000
Age 19.865320
SibSp 0.000000
Parch 0.000000
Fare 0.000000
Cabin 77.104377
dtype: float64
Observation: Missing values are shown in percentage. 77% of total values in Cabin is missing, and 19.8% values of Age is missing.¶
In [18]:
# Let's visualize which variables in the dataset are missing
sns.heatmap(train.isnull(), yticklabels = False, cbar = False, cmap="Blues")
Out[18]:
<AxesSubplot:>
Observation: Since a very high percentage of values in Cabin are missing, this variable is not going to help us in the model. We will drop it from the dataset¶
In [19]:
# Dropping the Cabin column
train.drop('Cabin',axis=1,inplace=True)
In [20]:
train.head()
Out[20]:
| Survived | Pclass | Sex | Age | SibSp | Parch | Fare | |
|---|---|---|---|---|---|---|---|
| 0 | 0 | 3 | male | 22.0 | 1 | 0 | 7.2500 |
| 1 | 1 | 1 | female | 38.0 | 1 | 0 | 71.2833 |
| 2 | 1 | 3 | female | 26.0 | 0 | 0 | 7.9250 |
| 3 | 1 | 1 | female | 35.0 | 1 | 0 | 53.1000 |
| 4 | 0 | 3 | male | 35.0 | 0 | 0 | 8.0500 |
In [21]:

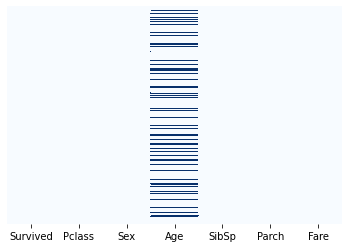

# Let's view the missing values in the data one more time!
sns.heatmap(train.isnull(), yticklabels = False, cbar = False, cmap="Blues")
Out[21]:
<AxesSubplot:>
Observation: There are 19.8% of missing values in Age, we can't entirely drop the column, nor we can keep the missing values. We will replace them with the average. However, we can't replace all the missing values with the average of Age. It would be misleading.¶
The mean of total Age could would be:¶
In [48]:
#Mean of total Age
train.Age.mean()
Out[48]:
29.736034227171306
Observation: If we check the average age for different sex (male and female), we can see they are different values.¶
In [23]:
# Let's get the average age for male (~29) and female (~25)
plt.figure(figsize=(15, 10))
sns.boxplot(x='Sex', y='Age',data=train)
Out[23]:
<AxesSubplot:xlabel='Sex', ylabel='Age'>
Hence, we should be replacing the missing Age values for female with average age of female and replace the missing Age values for male with average age of male.¶
In [24]:
#Shows the missing values of Age for male
train.loc[(train["Age"].isnull()) & (train["Sex"] == "male"),"Age"].head()
Out[24]:
5 NaN
17 NaN
26 NaN
29 NaN
36 NaN
Name: Age, dtype: float64
In [25]:
#Shows the average age for male
train.loc[train["Sex"] == "male","Age"].mean()
Out[25]:
30.72664459161148
In [26]:
#Replace missing age for male and female with average age of male and female respectively
train.loc[(train["Age"].isnull()) & (train["Sex"] == "male"),"Age"] = train.loc[train["Sex"] == "male","Age"].mean()
train.loc[(train["Age"].isnull()) & (train["Sex"] == "female"),"Age"] = train.loc[train["Sex"] == "female","Age"].mean()
In [27]:
#Check again for missing values
sns.heatmap(train.isnull(), yticklabels = False, cbar = False, cmap="Blues")
# now there are no missing values
Out[27]:
<AxesSubplot:>
Now there are no missing values in the dataset. We have completed the data cleaning.¶
In [28]:
train.head()
Out[28]:
| Survived | Pclass | Sex | Age | SibSp | Parch | Fare | |
|---|---|---|---|---|---|---|---|
| 0 | 0 | 3 | male | 22.0 | 1 | 0 | 7.2500 |
| 1 | 1 | 1 | female | 38.0 | 1 | 0 | 71.2833 |
| 2 | 1 | 3 | female | 26.0 | 0 | 0 | 7.9250 |
| 3 | 1 | 1 | female | 35.0 | 1 | 0 | 53.1000 |
| 4 | 0 | 3 | male | 35.0 | 0 | 0 | 8.0500 |
Observation : We can see that here we have only one categorical variable, i.e. Sex. We will create the dummy variable as shown below:¶
In [29]:
train = pd.get_dummies(data=train, columns=['Sex'],drop_first=True)
In [30]:
train.head()
Out[30]:
| Survived | Pclass | Age | SibSp | Parch | Fare | Sex_male | |
|---|---|---|---|---|---|---|---|
| 0 | 0 | 3 | 22.0 | 1 | 0 | 7.2500 | 1 |
| 1 | 1 | 1 | 38.0 | 1 | 0 | 71.2833 | 0 |
| 2 | 1 | 3 | 26.0 | 0 | 0 | 7.9250 | 0 |
| 3 | 1 | 1 | 35.0 | 1 | 0 | 53.1000 | 0 |
| 4 | 0 | 3 | 35.0 | 0 | 0 | 8.0500 | 1 |
In [31]:
#Let's drop the target coloumn before we do train test split
X = train.drop('Survived',axis=1)
y = train['Survived']
Now we will split the data into training (80% of the data) and rest 20% - named test, will be kept aside for later use.¶
In [32]:
from sklearn.model_selection import train_test_split
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=10)
MODEL TRAINING using Scikit Learn¶
First we will run the Multiple Logistic regression model using the Scikit Learn package. This is one of the popular package of Python to run Logistic Regression. Here, we are not required to check the p values, confidence intervals or multicollinearity. All will be taken care of by Python¶
In [33]:
# Fitting Logistic Regression to the Training set
from sklearn.linear_model import LogisticRegression
classifier = LogisticRegression(random_state = 0)
classifier.fit(X_train, y_train)
Out[33]:
LogisticRegression(random_state=0)
In [34]:
y_predict_test = classifier.predict(X_test)
Now we will check the confusion matrix and accuracy of the model¶
In [35]:
from sklearn.metrics import classification_report, confusion_matrix
print(confusion_matrix(y_predict_test,y_test))
[[100 17]
[ 17 45]]
In [36]:
from sklearn.metrics import classification_report
print(classification_report(y_test, y_predict_test))
precision recall f1-score support
0 0.85 0.85 0.85 117
1 0.73 0.73 0.73 62
accuracy 0.81 179
macro avg 0.79 0.79 0.79 179
weighted avg 0.81 0.81 0.81 179
Overall accuracy is 81% and precision for 0 and 1 are 85% and 73% respectively.¶
MODEL TRAINING using Statsmodel¶
Statsmodel is a very important package for machine learning algorithm like Logistic Regression. This enables us to understand the correlation of the different independent variables with the dependent variable.¶
It also provides different model validation parameters to check and fine-tune the model.¶
In [37]:
#Import package and run the model
import statsmodels.api as sm
logit = sm.Logit(y_train, X_train)
# fit the model
result = logit.fit()
result.summary()#all p values are significant
Optimization terminated successfully.
Current function value: 0.505715
Iterations 6
Out[37]:
| Dep. Variable: | Survived | No. Observations: | 712 |
|---|---|---|---|
| Model: | Logit | Df Residuals: | 706 |
| Method: | MLE | Df Model: | 5 |
| Date: | Mon, 28 Mar 2022 | Pseudo R-squ.: | 0.2454 |
| Time: | 12:55:37 | Log-Likelihood: | -360.07 |
| converged: | True | LL-Null: | -477.17 |
| Covariance Type: | nonrobust | LLR p-value: | 1.343e-48 |
| coef | std err | z | P>|z| | [0.025 | 0.975] | |
|---|---|---|---|---|---|---|
| Pclass | 0.1182 | 0.076 | 1.554 | 0.120 | -0.031 | 0.267 |
| Age | 0.0101 | 0.006 | 1.647 | 0.100 | -0.002 | 0.022 |
| SibSp | -0.3548 | 0.110 | -3.229 | 0.001 | -0.570 | -0.139 |
| Parch | -0.1766 | 0.119 | -1.482 | 0.138 | -0.410 | 0.057 |
| Fare | 0.0163 | 0.003 | 5.126 | 0.000 | 0.010 | 0.023 |
| Sex_male | -2.2946 | 0.202 | -11.370 | 0.000 | -2.690 | -1.899 |
We will remove all the variables with p value (P>|z| column) more than 0.05. If there are more than one such variable then we will remove them from the model one at a time, based on lowest absolute z value (z column) to be removed first.¶
Then we will check whether all confidence intervals ([0.025 0.975] columns) are of same sign. If not then we should remove them from the model.¶
In [38]:
#Here we have removed the insignificant variables one at a time.
X_train1 = X_train.drop(["Parch","Pclass"],axis=1)
In [39]:
logit = sm.Logit(y_train, X_train1)
# fit the model
result = logit.fit()
result.summary()#all p values are significant
Optimization terminated successfully.
Current function value: 0.508274
Iterations 6
Out[39]:
| Dep. Variable: | Survived | No. Observations: | 712 |
|---|---|---|---|
| Model: | Logit | Df Residuals: | 708 |
| Method: | MLE | Df Model: | 3 |
| Date: | Mon, 28 Mar 2022 | Pseudo R-squ.: | 0.2416 |
| Time: | 12:55:37 | Log-Likelihood: | -361.89 |
| converged: | True | LL-Null: | -477.17 |
| Covariance Type: | nonrobust | LLR p-value: | 1.047e-49 |
| coef | std err | z | P>|z| | [0.025 | 0.975] | |
|---|---|---|---|---|---|---|
| Age | 0.0147 | 0.005 | 3.044 | 0.002 | 0.005 | 0.024 |
| SibSp | -0.3412 | 0.096 | -3.542 | 0.000 | -0.530 | -0.152 |
| Fare | 0.0142 | 0.003 | 4.972 | 0.000 | 0.009 | 0.020 |
| Sex_male | -2.1537 | 0.186 | -11.569 | 0.000 | -2.519 | -1.789 |
In [40]:
data = pd.concat([y_train,X_train1],axis=1)
data.head()
Out[40]:
| Survived | Age | SibSp | Fare | Sex_male | |
|---|---|---|---|---|---|
| 57 | 0 | 28.500000 | 0 | 7.2292 | 1 |
| 717 | 1 | 27.000000 | 0 | 10.5000 | 0 |
| 431 | 1 | 27.915709 | 1 | 16.1000 | 0 |
| 633 | 0 | 30.726645 | 0 | 0.0000 | 1 |
| 163 | 0 | 17.000000 | 0 | 8.6625 | 1 |
In [41]:
### VIF Calculation
import pandas as pd
import numpy as np
import statsmodels.formula.api as sm
from statsmodels.stats.outliers_influence import variance_inflation_factor
result=sm.ols(formula="Survived~Age+SibSp+Fare+Sex_male",
data=data).fit()
result.summary()# shows total summary
#remove variable based on vif
#all vif values are under 2, hence no variable is removed
var = pd.DataFrame(round(result.pvalues,3))# shows p value
var["coeff"] = result.params#coefficients
variables = result.model.exog #.if I had saved data as rock
# this it would have looked like rock.model.exog
vif = [variance_inflation_factor(variables, i) for i in range(variables.shape[1])]
vif
var["vif"] = vif
var
Out[41]:
| 0 | coeff | vif | |
|---|---|---|---|
| Intercept | 0.000 | 0.774683 | 8.804167 |
| Age | 0.073 | -0.002176 | 1.091592 |
| SibSp | 0.000 | -0.073560 | 1.092640 |
| Fare | 0.000 | 0.001684 | 1.073503 |
| Sex_male | 0.000 | -0.522593 | 1.050660 |
Here we need to check if any value under vif column crosses the threshold limit of 2 (some projects also consider it as more than 2 or less than 2). However, Intercept value should be ignored. Model becomes biased without intercept.¶
We don't have vif value more than 2, hence we will keep all the variables.¶
Now we will predict the values of test data and check the accuracy¶
In [42]:
y_predict_test1 = result.predict(X_test)
In [43]:
y_predict_test1 = np.where(y_predict_test1 >= 0.5,1,0)
In [44]:
from sklearn.metrics import classification_report, confusion_matrix
print(confusion_matrix(y_predict_test1,y_test))
[[104 20]
[ 13 42]]
In [45]:
from sklearn.metrics import classification_report
print(classification_report(y_test, y_predict_test1))
precision recall f1-score support
0 0.84 0.89 0.86 117
1 0.76 0.68 0.72 62
accuracy 0.82 179
macro avg 0.80 0.78 0.79 179
weighted avg 0.81 0.82 0.81 179
