Bank Customers Retirement Predictions Using Support Vector Machines ¶
Support Vector Machine¶
A Support Vector Machine (SVM) is a powerful and versatile Machine Learning model, capable of performing linear or nonlinear classification, regression, and even outlier detection. It is one of the most popular models in Machine Learning, and anyone interested in Machine Learning should have it in their toolbox. SVMs are particularly well suited for classification of complex small- or medium-sized datasets. In this article, we will take up a classification problem and perform the Support Vector Machine algorithm. We will explain the results in simple english to make it easy to understand.
PROBLEM STATEMENT¶
Suppose you work as a data scientist at a major bank in NYC and you have been tasked to develop a model that can predict whether a customer is able to retire or not based on his/her features. Features are his/her age and net savings (retirement savings in the U.S.). Here Retire is your dependent variable and Age and Savings will be your independent variables. You thought that applying a machine learning algorithm like Support Vector Machine (SVM) can be of great help to solve the problem.
You may also apply other classification algorithms to figure out the accuracy and compare it with SVM though.
Importing Packages¶
In [1]:
# import libraries
import pandas as pd # Import Pandas for data manipulation using dataframes
import numpy as np # Import Numpy for data statistical analysis
import matplotlib.pyplot as plt # Import matplotlib for data visualisation
import seaborn as sns # Statistical data visualization
import os
import warnings
warnings.filterwarnings("ignore")
We will import the data¶
In [2]:
os.chdir("D:\\Python\\5")
bank_df = pd.read_csv('Bank_Customer_retirement.csv')
bank_df.head()
Out[2]:
| Customer ID | Age | Savings | Retire | |
|---|---|---|---|---|
| 0 | 0 | 39.180417 | 322349.8740 | 0 |
| 1 | 1 | 56.101686 | 768671.5740 | 1 |
| 2 | 2 | 57.023043 | 821505.4718 | 1 |
| 3 | 3 | 43.711358 | 494187.4850 | 0 |
| 4 | 4 | 54.728823 | 691435.7723 | 1 |
In this data, in Retire column 1 means they have accumulated enough money to spend the rest of their life peacefully, and 0 mean they are not yet ready to take up retirement.¶
Savings are the respective money accumulated and Age shows the age of the person.¶
Customer ID is the unique ID of the customers; not going to be helpful since all the data are different. Hence we will drop it from the data.¶
In [3]:
# Dropping Customer ID
bank_df.drop("Customer ID",axis=1,inplace=True)
bank_df.head(2)
Out[3]:
| Age | Savings | Retire | |
|---|---|---|---|
| 0 | 39.180417 | 322349.874 | 0 |
| 1 | 56.101686 | 768671.574 | 1 |
VISUALIZING THE DATA¶

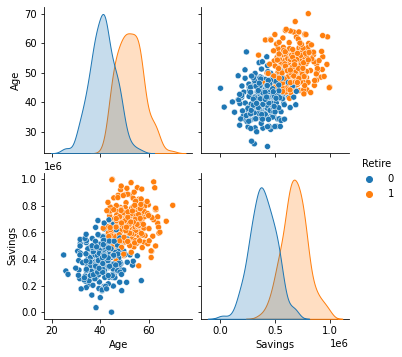

Here we are showing the histogram and scatter plot for Age and Saving for different values of Retire values.¶
Observation: There is a clear demarcation between Retire values (0 and 1) in respect to Age and Savings. We can conclude that both the independent variables (Age and Savings) are likely to predict the dependent variable (Retire) to a great extent.¶
In [4]:
sns.pairplot(bank_df, hue = 'Retire', vars = ['Age', 'Savings'] )
Out[4]:
<seaborn.axisgrid.PairGrid at 0x1ad5add8>
In [26]:

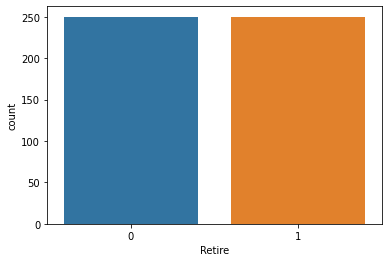

sns.countplot(bank_df['Retire'], label = "Retirement")
Out[26]:
<AxesSubplot:xlabel='Retire', ylabel='count'>
In [ ]:
Checking for missing values¶
In [6]:
# number of missing values by variables
bank_df.isnull().sum()
Out[6]:
Age 0 Savings 0 Retire 0 dtype: int64
Observation: There are no missing values in the data¶
In [7]:
# Let's drop the target label coloumns to save only the independent variable
X = bank_df.drop(['Retire'],axis=1)
In [8]:
# Let's save the target label coloumns as y
y = bank_df['Retire']
Now we will split the data into training (80% of the data) and rest 20% - named test, will be kept aside for later use.¶
In [9]:
from sklearn.model_selection import train_test_split
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size = 0.20, random_state=1005)
In [10]:
from sklearn.svm import SVC
svc_model = SVC()
svc_model.fit(X_train, y_train)
Out[10]:
SVC()
In [11]:
from sklearn.metrics import classification_report, confusion_matrix
y_predict = svc_model.predict(X_test)
cm = confusion_matrix(y_test, y_predict)

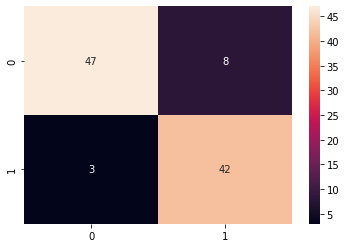

Visualize the confusion matrix¶
In [12]:
sns.heatmap(cm, annot=True)
Out[12]:
<AxesSubplot:>
In [13]:
print(classification_report(y_test, y_predict))
precision recall f1-score support
0 0.94 0.85 0.90 55
1 0.84 0.93 0.88 45
accuracy 0.89 100
macro avg 0.89 0.89 0.89 100
weighted avg 0.90 0.89 0.89 100
Overall accuracy is 89% and precision for 0 and 1 are 84% and 94% respectively.¶
Improving the model using feature scaling¶
In [14]:
# Feature Scaling
from sklearn.preprocessing import StandardScaler
sc = StandardScaler()
X_train = sc.fit_transform(X_train)
X_test = sc.transform(X_test)
Model training¶
In [15]:
from sklearn.svm import SVC
svc_model = SVC()
svc_model.fit(X_train, y_train)
Out[15]:
SVC()
Evaluating the model with scaled data¶
In [16]:
from sklearn.metrics import classification_report, confusion_matrix
y_predict = svc_model.predict(X_test)
cm = confusion_matrix(y_test, y_predict)
print(classification_report(y_test, y_predict))
precision recall f1-score support
0 0.95 0.95 0.95 55
1 0.93 0.93 0.93 45
accuracy 0.94 100
macro avg 0.94 0.94 0.94 100
weighted avg 0.94 0.94 0.94 100
Observation: The accuracy has improved to 94% from the previous model accuracy of 89%¶
IMPROVING THE MODEL - Hyper parameter tuning¶
We will now tune different values of C parameters, gamma and different kernels to further fine tune the results in order to achieve higher accuracy¶
In [27]:
param_grid = {'C': [0.001, 0.1, 1], 'gamma': [1, 0.1, 0.01, 0.001], 'kernel': ['linear', 'poly', 'rbf', 'sigmoid']}
In [28]:
from sklearn.model_selection import GridSearchCV
grid = GridSearchCV(SVC(),param_grid,refit=True)
grid.fit(X_train,y_train)
Out[28]:
GridSearchCV(estimator=SVC(),
param_grid={'C': [0.001, 0.1, 1], 'gamma': [1, 0.1, 0.01, 0.001],
'kernel': ['linear', 'poly', 'rbf', 'sigmoid']})
In [29]:
grid_predictions = grid.predict(X_test)
cm = confusion_matrix(y_test, grid_predictions)
print(classification_report(y_test,grid_predictions))
precision recall f1-score support
0 0.96 0.95 0.95 55
1 0.93 0.96 0.95 45
accuracy 0.95 100
macro avg 0.95 0.95 0.95 100
weighted avg 0.95 0.95 0.95 100
Observation: The accuracy has further improved to 95% from the previous model accuracy of 94%. This is will be our final result¶
This is how we can check for the best combination of hyper-parameters to get the best result.¶
In [21]:
grid.best_params_
Out[21]:
{'C': 1, 'gamma': 1, 'kernel': 'linear'}
